Description
Since 2013 the concept Reverse Polarity Rejection has been patented and marketed by RVD-Safe as an RVD-EMR.
The standard AS-NZS_3001.2-2022 was released on the 18th November 2022 giving 12 months grace before mandating and comes into force November 2023.
Page 24, 2.6.4 Protection against incorrect polarity, for every single -phase external supply, protection against transposition of active & neutral conductors.
Transposition sensor, commonly referred to as a reverse polarity sensor.
The 16amp combination RCBO & RVD-EMR is leading the way forward in RV safety for Mains and Isolated Power.
The Residual Voltage Detection Unit (RVD-EMR) is designed for use in TN (M.E.N)/TT electrical earthing systems to enhance electrical protection to any electrical distribution system already protected by an RCBO.
The RVD-EMR provides two (2) additional layers of electrical protection:
1. The RVD-EMR provides an additional layer of electrical protection overcoming conventional issues with protective devices usually caused by environmental factors including high impedance environments such as sandy, hard rocky soils, wet electrical areas, unearthed electrical supplies, portable generators and power inverters in all applications but specifically in Recreational Vehicles where confinement of use with multiple appliances occur.
2. Detects and trips the RCBO when the Supply Neutral and Active are swapped which is represented by the letter “R” signifying Reverse Polarity Protection.
If the RCBO does not detect and trips on an earth leakage fault, if the earth fault leakage voltage / leakage current between the Active and the RVD-EMR Sense line (earth/frame) is above the specifications detailed below, RVD- EMR will automatically trip the electrically connected RCBO and isolate the supply voltage to the load.
Physical Data

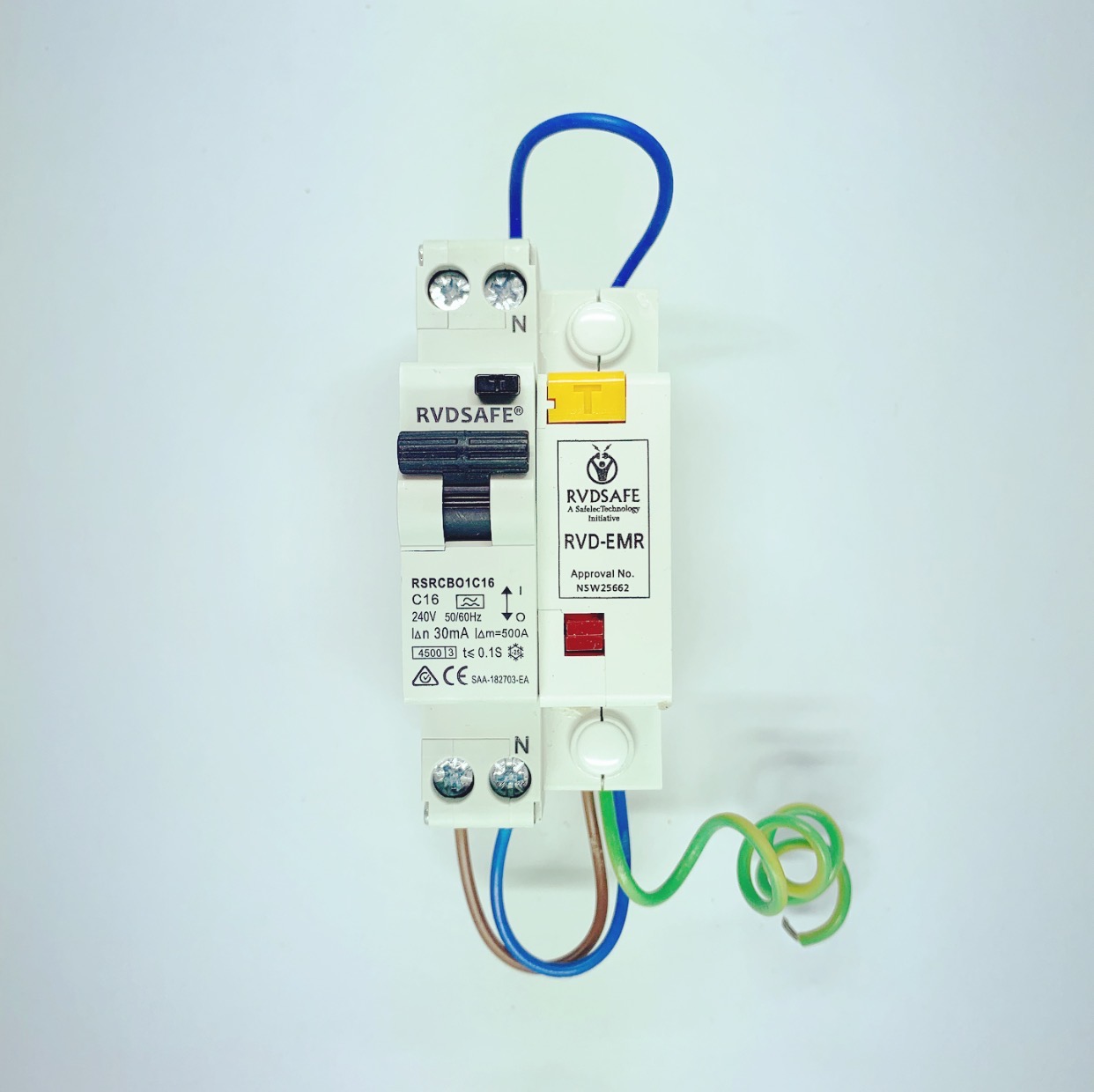

Dimensions: 36mm W, 78mm H and 65mm D, combined with supplied RCBO and is DIN rail mountable,
Connections are:
Neutral Supply-side – Blue
Active Load-side – Brown
Neutral Load-side – Blue
Earth/Frame (Sensor) – Green/Yellow
The device will in no way impede or interfere with the normal operation of an RCBO.
Technical Data
Certified to AS/NZS3190 and exceeds the requirements of AS/NZS3000,
Compliance Approval No: NSW25662,
Voltage detection: is below ‘touch potential’ level,
Trip Current: approximately 25 to 30mA,
Trip time: approximately 20mSec,
Associated RCBO actuating current imbalance trip level: 30mA
Model Voltage ratings are: 220 to 240VAC, or 110 to 120VAC
Frequency: 50Hz and 60Hz,
Unit operates alongside a quality brand and current rated RCBO,
Enhances RCBO operation in TN(MEN), TT earthing environments
Reverse Polarity detection and isolation for TN(MEN) systems
Red LED indication on fault detection
Confirmation of compliance to ESV’s additional requirements for the RCBOs.
The following details will be added to the list of complying products on the Energy Safe Victoria website.
Brand: RVDSAFE
Model: RSRCBO1C10
Rating: C10 30mA, 4.5kA, type A
Construction: 2 pole device
Brand: RVDSAFE
Model: RSRCBO1C16
Rating: C16 30mA, 4.5kA, type A
Construction: 2 pole device
Brand: RVDSAFE
Model: RSRCBO1C20
Rating: C20 30mA, 4.5kA, type A
Construction: 2 pole device
Brand: RVDSAFE
Model: RSRCBO1C25
Rating: C25 30mA, 4.5kA, type A
Construction: 2 pole device
Brand: RVDSAFE
Model: RSRCBO1C32
Rating: C32 30mA, 4.5kA, type A
Construction: 2 pole device
Brand: RVDSAFE
Model: RSRCBO1C40
Rating: C40 30mA, 4.5kA, type A
Construction: 2 pole device
Brand: RVDSAFE
Model: RSRCBO2PM50
Rating: C50 30mA, 6kA, type A
Construction: 2 pole device
The compliance officer from Energy Safe Victoria stated the following:
22/12/2018
“In relation to the RVDSAFE and RVD-EI module, from my observation of the construction of the device I do not believe that this device is covered under the ESV prohibition for RCBO’s.
We requested the RVD-SAFE RCBO be tested for verification regardless and this is now confirmed in writing. Showing our intention to lead with electrical safety for Generators and Inverters for Australia and New Zealand with ACTYPE (AUS) and ATYPE (NZ).”
